AMPIRE BOLD6 Subwoofer, 16,5cm/6,5'', 4 + 4 Ohm, 250 Watt
-
Product number:Bold 6
-
Delivery time:2-3 Tage
-
EAN:4260052634561
-
Manufacturer:
-
Free delivery
-
Prepayment -5%
-
PayPal -3%
AMPIRE BOLD6 subwoofer, 16.5 cm / 6.5'', 4 + 4 ohms, 250 watts
This extremely high-quality subwoofer BOLD series are the key to clean and powerful sound reproduction in the lowest frequency range, even at very high volumes.
Of course, these are best suited to the combination with the other components AMPIRE speaker - which guarantees a clean and cohesive sound across all frequencies at much noise.
The cone is made of very lightweight, high-strength fiberglass sandwich composite and the specially developed butyl rubber causes an extremely flat frequency response. The significantly oversized voice coil works very efficiently and optimally cooled in unconventional magnetic drive. Despite its compact size, this subwoofer can reproduce frequencies below 50 Hz very clean.
The ventilation opening on the back of the magnet has been designed to be as large as possible and provided with a rounding, minimizes flow noise effectively and optimizes the required pressure balance.

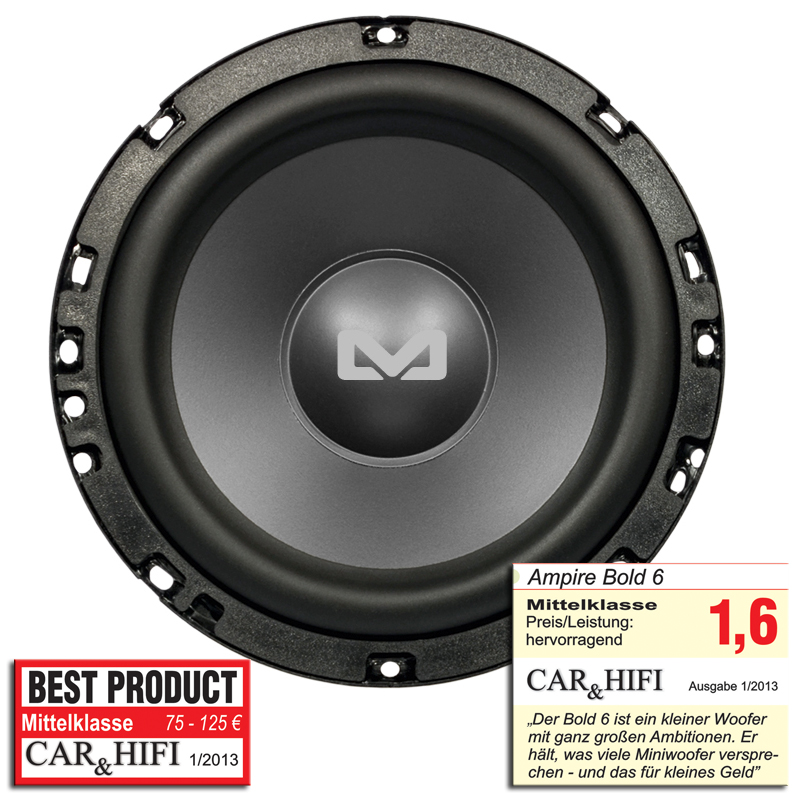

QUOTES FROM THE REVIEW CAR & HiFi 1/2013
Test results "outstanding"
"The four double-wound voice coil in the proud 38 mm format is an announcement .."
"It works perfectly in ported enclosures, where he is good for a lower cutoff frequency below 45 Hz -. It must be time to savor and on the tongue"
"He plays equally abysmal and very clean and crisp."
"A real audiophile woofer that makes many highly acclaimed sound bass look old."
"The BOLD6 is a small woofer with big ambitions, he meets the promise of many Miniwoofer -. And for little money."

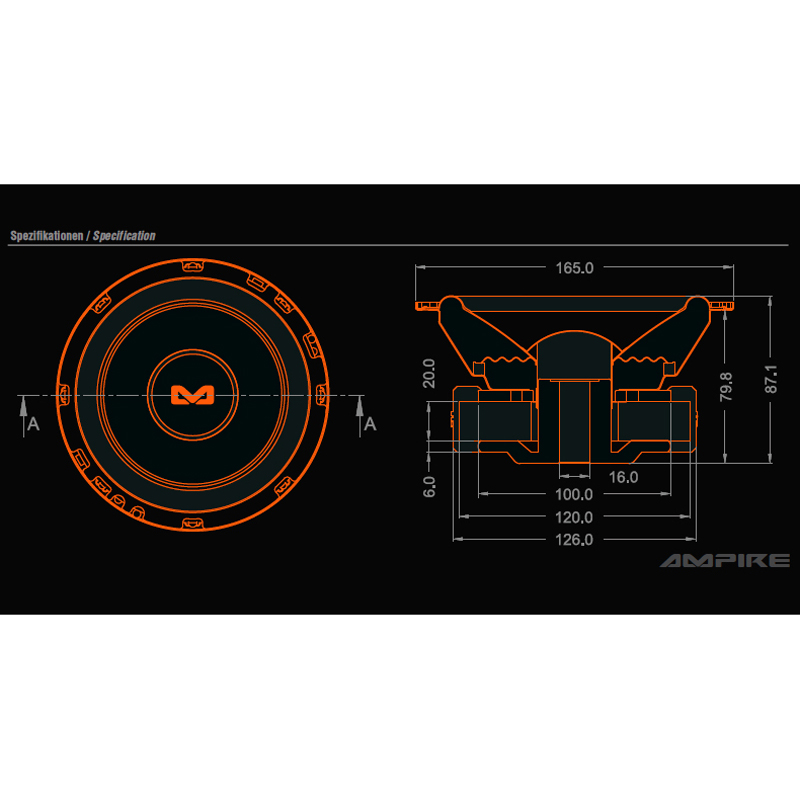

SPECIFICATIONS
Subwoofer Drivers
Nominal diameter: 165mm
Impedance: 4 + 4 Ohm
Die-cast aluminum basket
Polycarboxylic membrane
Vented spider
8mm X-max.
Ultra Low Bass Technology
Pe 125/250 watt power handling
Housing (closed)
10 liters ink.Chassis, F3 66Hz, SPL 110dB @ 70Hz
Housing for optimal sound (bass):
11.4 liters including chassis and tube displacement
5cm tube with 20cm length
F3 42Hz, SPL 117dB @ 56Hz
TS PARAMETERS (VC parallel):
Fs / Hz: 40.28
VAS / L: 10.899
Qts: 0.449
Qes: 0.488
Qms: 5,602
Re / Ohm: 3.3 + 3.3
Z / Ohm: 4 + 4
SPL / dB: 83.5
Mmd / gr: 31.83
Xmax / mm: 8
Sd / cm ²: 126.7
Vd / cc: 101.4
D / mm: 127.0
Pe W /: 125/250
This extremely high-quality subwoofer BOLD series are the key to clean and powerful sound reproduction in the lowest frequency range, even at very high volumes.
Of course, these are best suited to the combination with the other components AMPIRE speaker - which guarantees a clean and cohesive sound across all frequencies at much noise.
The cone is made of very lightweight, high-strength fiberglass sandwich composite and the specially developed butyl rubber causes an extremely flat frequency response. The significantly oversized voice coil works very efficiently and optimally cooled in unconventional magnetic drive. Despite its compact size, this subwoofer can reproduce frequencies below 50 Hz very clean.
The ventilation opening on the back of the magnet has been designed to be as large as possible and provided with a rounding, minimizes flow noise effectively and optimizes the required pressure balance.
QUOTES FROM THE REVIEW CAR & HiFi 1/2013
Test results "outstanding"
"The four double-wound voice coil in the proud 38 mm format is an announcement .."
"It works perfectly in ported enclosures, where he is good for a lower cutoff frequency below 45 Hz -. It must be time to savor and on the tongue"
"He plays equally abysmal and very clean and crisp."
"A real audiophile woofer that makes many highly acclaimed sound bass look old."
"The BOLD6 is a small woofer with big ambitions, he meets the promise of many Miniwoofer -. And for little money."
SPECIFICATIONS
Subwoofer Drivers
Nominal diameter: 165mm
Impedance: 4 + 4 Ohm
Die-cast aluminum basket
Polycarboxylic membrane
Vented spider
8mm X-max.
Ultra Low Bass Technology
Pe 125/250 watt power handling
Housing (closed)
10 liters ink.Chassis, F3 66Hz, SPL 110dB @ 70Hz
Housing for optimal sound (bass):
11.4 liters including chassis and tube displacement
5cm tube with 20cm length
F3 42Hz, SPL 117dB @ 56Hz
TS PARAMETERS (VC parallel):
Fs / Hz: 40.28
VAS / L: 10.899
Qts: 0.449
Qes: 0.488
Qms: 5,602
Re / Ohm: 3.3 + 3.3
Z / Ohm: 4 + 4
SPL / dB: 83.5
Mmd / gr: 31.83
Xmax / mm: 8
Sd / cm ²: 126.7
Vd / cc: 101.4
D / mm: 127.0
Pe W /: 125/250
Product information "AMPIRE BOLD6 Subwoofer, 16,5cm/6,5'', 4 + 4 Ohm, 250 Watt"
AMPIRE BOLD6 subwoofer, 16.5 cm / 6.5'', 4 + 4 ohms, 250 watts
This extremely high-quality subwoofer BOLD series are the key to clean and powerful sound reproduction in the lowest frequency range, even at very high volumes.
Of course, these are best suited to the combination with the other components AMPIRE speaker - which guarantees a clean and cohesive sound across all frequencies at much noise.
The cone is made of very lightweight, high-strength fiberglass sandwich composite and the specially developed butyl rubber causes an extremely flat frequency response. The significantly oversized voice coil works very efficiently and optimally cooled in unconventional magnetic drive. Despite its compact size, this subwoofer can reproduce frequencies below 50 Hz very clean.
The ventilation opening on the back of the magnet has been designed to be as large as possible and provided with a rounding, minimizes flow noise effectively and optimizes the required pressure balance.
QUOTES FROM THE REVIEW CAR & HiFi 1/2013
Test results "outstanding"
"The four double-wound voice coil in the proud 38 mm format is an announcement .."
"It works perfectly in ported enclosures, where he is good for a lower cutoff frequency below 45 Hz -. It must be time to savor and on the tongue"
"He plays equally abysmal and very clean and crisp."
"A real audiophile woofer that makes many highly acclaimed sound bass look old."
"The BOLD6 is a small woofer with big ambitions, he meets the promise of many Miniwoofer -. And for little money."
SPECIFICATIONS
Subwoofer Drivers
Nominal diameter: 165mm
Impedance: 4 + 4 Ohm
Die-cast aluminum basket
Polycarboxylic membrane
Vented spider
8mm X-max.
Ultra Low Bass Technology
Pe 125/250 watt power handling
Housing (closed)
10 liters ink.Chassis, F3 66Hz, SPL 110dB @ 70Hz
Housing for optimal sound (bass):
11.4 liters including chassis and tube displacement
5cm tube with 20cm length
F3 42Hz, SPL 117dB @ 56Hz
TS PARAMETERS (VC parallel):
Fs / Hz: 40.28
VAS / L: 10.899
Qts: 0.449
Qes: 0.488
Qms: 5,602
Re / Ohm: 3.3 + 3.3
Z / Ohm: 4 + 4
SPL / dB: 83.5
Mmd / gr: 31.83
Xmax / mm: 8
Sd / cm ²: 126.7
Vd / cc: 101.4
D / mm: 127.0
Pe W /: 125/250
This extremely high-quality subwoofer BOLD series are the key to clean and powerful sound reproduction in the lowest frequency range, even at very high volumes.
Of course, these are best suited to the combination with the other components AMPIRE speaker - which guarantees a clean and cohesive sound across all frequencies at much noise.
The cone is made of very lightweight, high-strength fiberglass sandwich composite and the specially developed butyl rubber causes an extremely flat frequency response. The significantly oversized voice coil works very efficiently and optimally cooled in unconventional magnetic drive. Despite its compact size, this subwoofer can reproduce frequencies below 50 Hz very clean.
The ventilation opening on the back of the magnet has been designed to be as large as possible and provided with a rounding, minimizes flow noise effectively and optimizes the required pressure balance.
QUOTES FROM THE REVIEW CAR & HiFi 1/2013
Test results "outstanding"
"The four double-wound voice coil in the proud 38 mm format is an announcement .."
"It works perfectly in ported enclosures, where he is good for a lower cutoff frequency below 45 Hz -. It must be time to savor and on the tongue"
"He plays equally abysmal and very clean and crisp."
"A real audiophile woofer that makes many highly acclaimed sound bass look old."
"The BOLD6 is a small woofer with big ambitions, he meets the promise of many Miniwoofer -. And for little money."
SPECIFICATIONS
Subwoofer Drivers
Nominal diameter: 165mm
Impedance: 4 + 4 Ohm
Die-cast aluminum basket
Polycarboxylic membrane
Vented spider
8mm X-max.
Ultra Low Bass Technology
Pe 125/250 watt power handling
Housing (closed)
10 liters ink.Chassis, F3 66Hz, SPL 110dB @ 70Hz
Housing for optimal sound (bass):
11.4 liters including chassis and tube displacement
5cm tube with 20cm length
F3 42Hz, SPL 117dB @ 56Hz
TS PARAMETERS (VC parallel):
Fs / Hz: 40.28
VAS / L: 10.899
Qts: 0.449
Qes: 0.488
Qms: 5,602
Re / Ohm: 3.3 + 3.3
Z / Ohm: 4 + 4
SPL / dB: 83.5
Mmd / gr: 31.83
Xmax / mm: 8
Sd / cm ²: 126.7
Vd / cc: 101.4
D / mm: 127.0
Pe W /: 125/250
